Home /Products/Honey Storage Tank/Liquid with suspended chemical industry stainless steel coated agitating tank /wax/adhesive/ guel solids/motor oil/paint agitator mixing tank

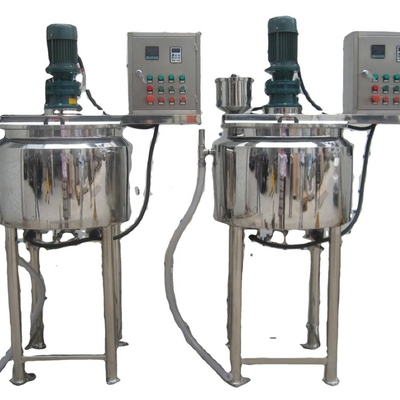

Liquid with suspended chemical industry stainless steel coated agitating tank /wax/adhesive/ guel solids/motor oil/paint agitator mixing tank

1 Set
MOQ
$5,000.00(>=1 Sets)
Price
Liquid with suspended chemical industry stainless steel coated agitating tank /wax/adhesive/ guel solids/motor oil/paint agitator mixing tank
Features Gallery Product Description Request A Quote
Features
Specifications
Mixer Type: Planetary Mixer
Barrel Volume (L): 1000
Max. Loading Volume (L): 1000 L
Range Of Spindle Speed(r.p.m): 1 - 63 R.p.m
Max. Loading Capacity: 1000L
Weight (KG): 250 KG
Condition: New
Product Type: Mixing
Application: Liquid With Suspended Solids, Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Pharmaeutical
Additional Capabilities: Heating
Voltage: Customize
Dimension(L*W*H): Customize
Power (kW): 15 KW
Warranty: 1 Year
Key Selling Points: Easy To Operate
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC, Bearing, Engine
Product Name: Liquid Mixing Tank With Agitator Chemical Blending Tank Agitat
Application Scope: Food Pharmacy
Function: Homogenzing
Heating Method: Steam Electric Gas Heating
Stirrer Type: Scraper
Jacket: Heating Jacket Avaible
Machine Type: Dispersion Blender Mixer Machine
Material: Stainless Steel 304 / SUS316L
Expericence: 20 Years
After-sales Service Provided: Online Support, Field Installation, Commissioning And Training
After Warranty Service: No Service, Online Support
Local Service Location: None
Certification: CE IOS
Basic Infomation
Certification: CE IOS
Payment & Shipping Terms
Product Description
Product Description
Structure:
Stainless steel mixing tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used
as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .
1.Capacity :100-20000L
2.Single layer/ double layers/ three layers
3.Motor power:0.75-5.5kw
4.Materials are all sanitary stainless steel .
5.Humanized structure design and easy to operate .
6.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .

Configuration of tank :
1.Quick open manhole .
2.Various types of CIP cleaners .
3.Fly and insect resistant sanitary breathing cover .
4.Adjustable triangular bracket .
5.Dismountable materials input pipe assembly .
6.Thermometer (According to customer requirements ).
7.Ladder (According to customer requirements).
8.Paddle blender .
9.Liquid level meter and lever controller (According to customer requirements) .
10.Eddy-proof board .
Specification
Model
Volume(L)
Blending power（kw）
Blending rotation speed（r/m）
homogenizing power(kw)
homogeniziing speed(r/min)
heating method
GY-200
200
1.5
0~63
4.0
0~3200
steam heating or electirc heatin
GY-500
500
3.0
0~63
7.5
0~3200
GY-1000
1000
4.0
0~63
11
0~3200
GY-1500
1500
5.5
0~63
11-15
0~3200
GY-2000
2000
7.5
0~63
15-15.8
0~3200
GY-3000
3000
7.5-11
0~63
18.5-22
0~3200
GY-5000
5000
11
0~63
18.5-22
0~3200
Application

>Used in cosmetics and medicines, including lotions, bath oils, hand sanitizers, shampoos, conditioners and liquid soaps. In addition, it also includes shower gel, nail polish and medicine. >Used in household and industrial products, including hand sanitizer, detergent, disinfectant, bleach, motor oil. Also printing inks, alcohol, paints, cleaners, solvents, herbicides and pesticides. In addition, veterinary and ethical supplies are also provided. >For food and related products, including dairy products, cheese, yogurt, milk and non-dairy products. Other products include sauces, jams, stews, seasonings, mayonnaise and salad dressings. In addition, there are peanut butter, honey, chutney, pickles, cooking oil, juice and liqueur. In addition, toppings and seasonings.
Production line

customized production line services, please click to chat！！！
Packing & Delivery
Package:Normally, we will use plywood case for packing the machine, but if you have special request, we can do it as your request!

Delivery time:30 days after confirming order, detail delivery date should be decided according to production season and order
details.
