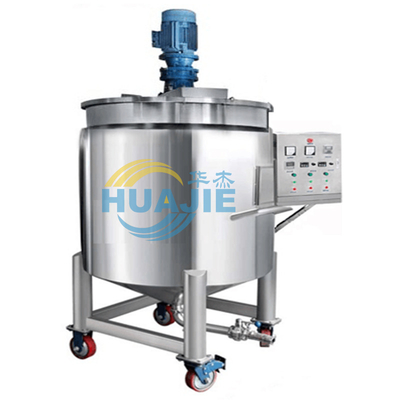

HUAJIE 50L-10000L viscous liquid vapor/reactor jacketed stirrer tank electric heating mixing liquid

1.0 Sets
MOQ
$3,000.00(1 - 4 Sets) $2,500.00(>=5 Sets)
Price
HUAJIE 50L-10000L viscous liquid vapor/reactor jacketed stirrer tank electric heating mixing liquid
Features Gallery Product Description Request A Quote
Features
Specifications
Mixer Type: Homogenizer
Barrel Volume (L): 50-10000L
Material Processed: Chemicals, Food, Medicine, Daily Cosmetic
Max. Loading Volume (L): 20000 L
Range Of Spindle Speed(r.p.m): 1 - 60 R.p.m
Max. Loading Capacity: 50-20000L
Weight (KG): 1000 KG
Material: SUS304, SUS316L, 304SS;316L
Condition: New
Application: Viscous Fluid
Voltage: 380V/480v/230V 3 Phase 50-60hz Can Be Customized
Power (kW): 15 KW
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Daily Cosmetic, Food, Pharmaceutical, Chemical
Showroom Location: China
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Pressure Vessel, Gearbox, Bearing
After-sales Service Provided: Online Support
Product Name: Steam/electric Heating Jacketed Reactor Agitator Mixing Tank Liquid
Usage: Cosmetic, Food, Pharmaceutical,chemical
Stirrer Type: Paddling Stirring
Capacity: 50-20000L
Heating Method: Steam&electric
Homogenizer: 0-3600rpm
Machine Type: Mixng Machine
Discharge: Butterfly Valve
Basic Infomation
Payment & Shipping Terms
Packaging Details: HUAJIE 50L-10000L Steam/electric heating jacketed reactor agitator mixing tank liquid is packing by exported standard Plywood cases
Supply Ability: 50 Set/Sets per Month
Product Description
Product Paramenters
Model
Effective
Stirrring power and speed
Homogeneous power and speed
Heating power
Capcity
KW
R/MIN
KW
R/MIN
Electric heating
Steam heating
PMC-50
50
0.75
0-65
3
3600
6 KW
Steam heating
energy save
and
environmental
protection
PMC-100
100
1.5
0-65
1.5
3600
12 KW
PMC-150
150
1.5
0-65
1.5
3600
12 KW
PMC-200
200
1.5
0-65
3
3600
18 KW
PMC-300
300
1.5
0-65
3
3600
18 KW
PMC-500
500
2.2
0-65
4
3600
27 KW
PMC-1000
1000
4
0-65
7.5
3600
36 KW
PMC-1500
1500
4
0-65
11
3600
45 KW
PMC-2000
2000
5.5
0-65
11
3600
recommed steam heating
PMC-3000
3000
7.5
0-55
15
3600
PMC-5000
5000
11
0-55
22
3600
The parameters for reference ONLY, all the machines can be customized accordingly.
High speed disperser .might mixing and disperse Viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AES, AESA LSA during liquid production which can save energy consumption and shorten production the and shorten
production period.Main adopts stepless timing device which reduce babble occur under low temperature and highviscosity condition less air bubble will be formed to produce liquid washing products.Finished products can be discharged by Disc-valve or suitable to all liquid wash products.

The all-around wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products of
different processes according to customer requirements.

The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many
indissoluble materials such as AES, AESA, LSA,etc.during the liquid detergent production period.

The pot body is welded by imported three-layer stainless steel plate.the tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements

According to customer requirement, the tank can heat and cool materials the heating way including steam heating and electric heating.easy to discharge,bottom direct discharge or by transfer pump.
